The hot melt glue machine is very popular and has a wide range of applications. Let us introduce the glue main machine first below.

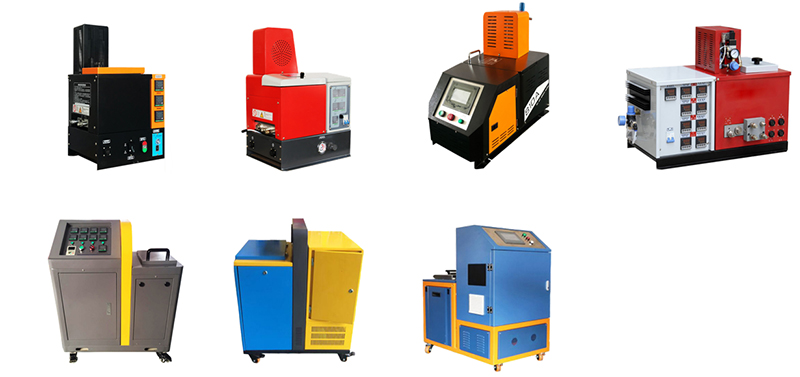

Our hot melt glue mian machine have different glue tank capacity ,5L ,7L,10L(PLC new type and normal type) ,20L,30L,50L.you can according your need to choose.
5L glue machine structure:
Firstly, this is the cap of hot melt glue tank. From here, you can add the hot melt glue block for melting, usually it is no more than 3/4 of the glue tank capacity. Also you can add the hot melt glue when you are using the machine. It needs 30-40 minutes for heating the glue, then the hot melt glue will be melting completely. Please be careful, don’t overflow when you are adding the glue.
Secondly, you can see the Temperature controllers in the main panel, this first one is Temperature controller for Glue Tank. The second one is Temperature controller for glue hose. The third one is Temperature controller for hot melt glue gun. You can adjust the temperature of different parts by modified the temperature controllers respectively. It will be set a common used temperature, usually, it doesn’t need to be modified. But if you change the type of hot melt glue or make some changes, it can be modified according to the using situation.
Thirdly, these are the main switches of glue machine, this one is the Motor Speed Regulator, it includes two parts, the above Speed controller is used for modifying the Motor Level from Low level No.1 to High level No.9. Usually the Motor Power will be set between Level No.4 to No.5 for steadily pushing the glue. Also it can be modified according to the using situation. The under switch is motor speed switch. And, this switch is the whole switch of the hot melt glue machine, the Power switch.

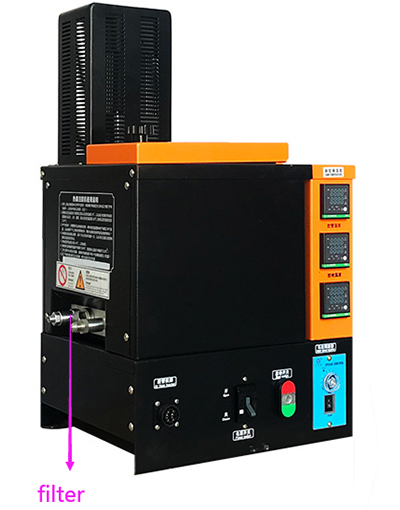

The last one is the Air Hose Inserted connector, it is use for connecting the glue hose. Also you can check this side of glue machine, it has two hose connectors for connecting two hoses with two glue guns.The middle outlet is filter element, the machine doesn’t need to be cleaned within 6 months after received.

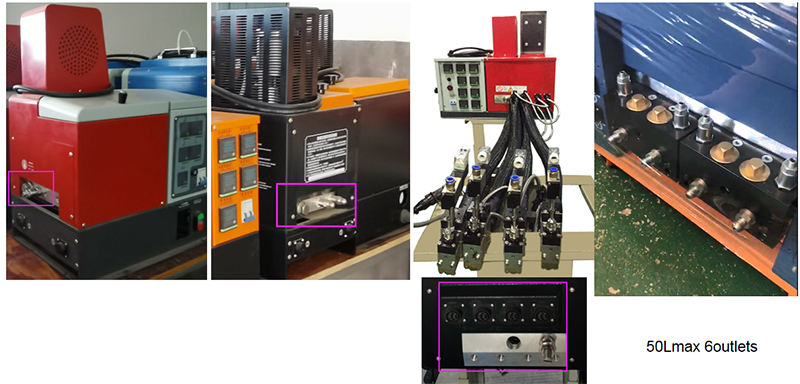

outlets,for 10L glue machine max 4 outlets,for 50L glue machine max 6outlets.you can according to the gun need choose the outlet of the glue machine.

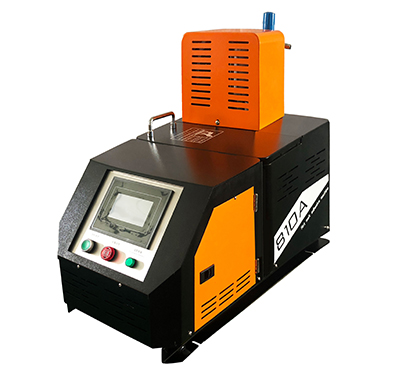

For the 10L glue machine,which is the new design with PLC controlled,simple and convenient operation.

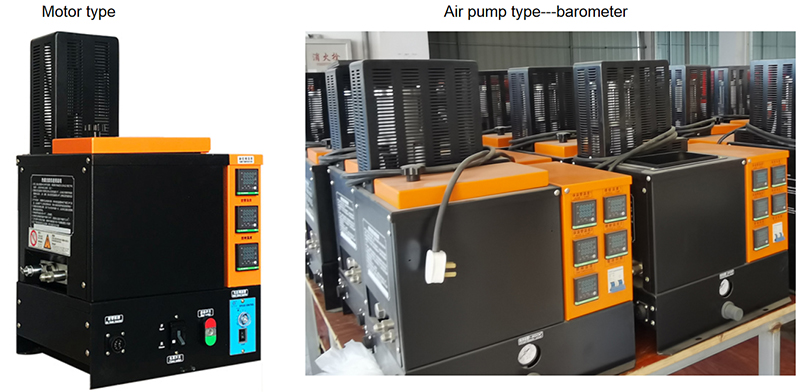

Our hot melt glue machine have two types:motor type and air pump type,you can see the barometer on the machine of air pump type,according to the gun choose the machine type,air pump types neec connect with the air compressor
