The hot melt glue costing machine is very popular and has a wide range of applications. Let us introduce the structure of the glue coating machine below.
The glue coating machine is to pass the glue to the surface of the product through the roller

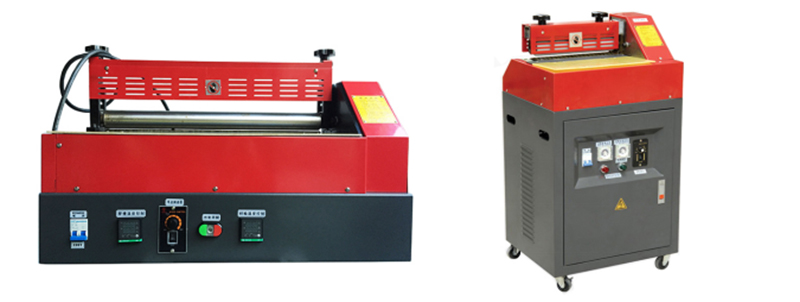

The glue coating machine with two types,one is the horizontal type,another is the vertical type.

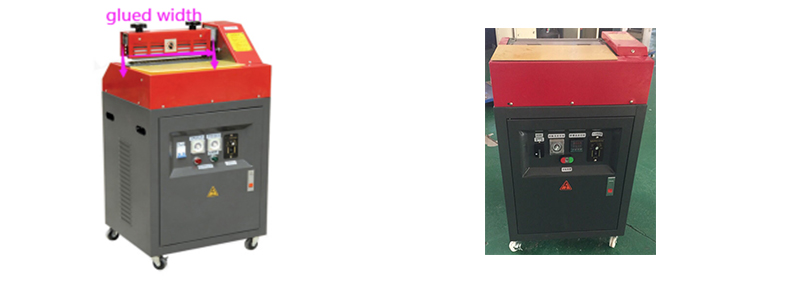

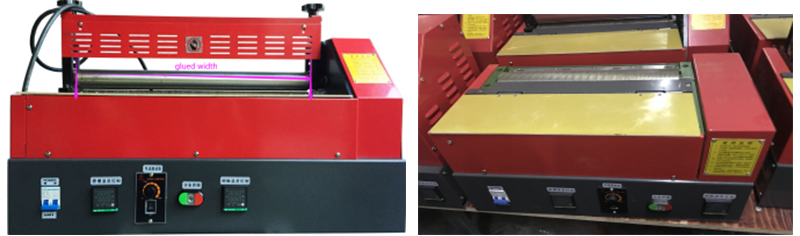

The standard glue width is:300mm/400mm/600mm/800mm/1000mm/1300mm…etc,other sizes need to be customized,welcome contact JORI .
The glue coating machine is to pass the glue to the surface of the product through the roller
The glue coating machine with two types,one is the horizontal type,another is the vertical type.
The standard glue width is:300mm/400mm/600mm/800mm/1000mm/1300mm…etc,other sizes need to be customized,welcome contact JORI .

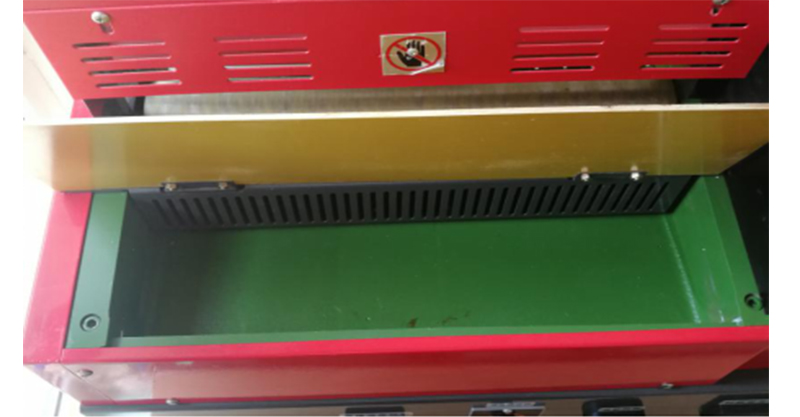

400mm gluing coating machine glue tank capacity is about 7L ,
you can choose the different kinds of glue according to their requirement

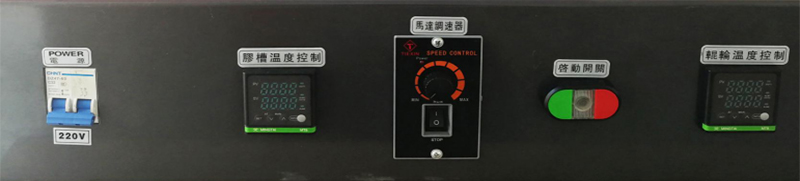

These are the main switch of the glue coating machine,the power switch, start switch, motor speed controller, glue tank temperature controller and roller temperature controller,each button is independently controlled, easy and convenient to operate the machine for us.

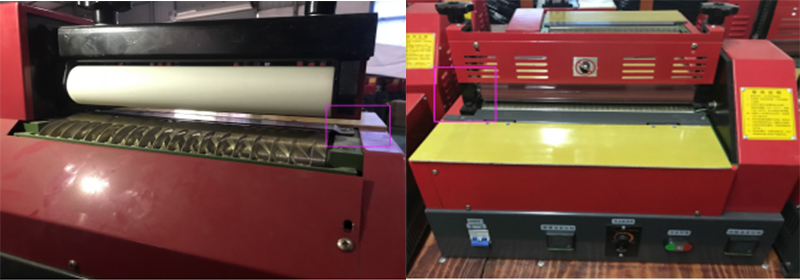

The glue coating machine can with the pressure wheel or without.
The pressure wheel is detachable,the height can be adjusted with the pressure wheel.
This top is the rubber roller
The below is the steel roller

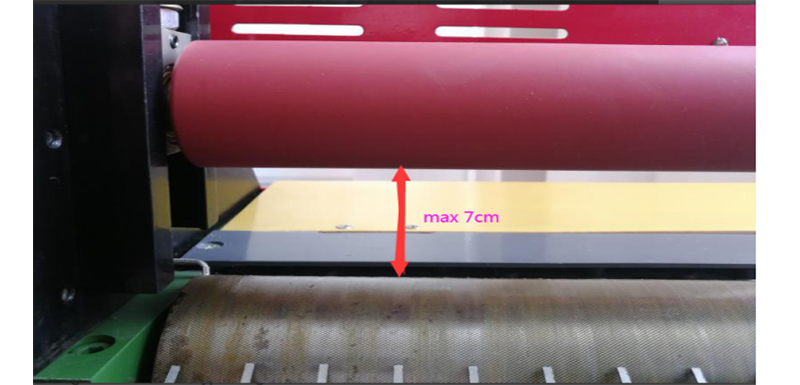

Adjustable height is the height between two rollers, standard height is 25mm, Max: 70mm;Min height: 3 sheets of A4 paper
If the product height over 7cm, you need to detachable the pressure wheel, or don’t choose the pressure wheel when purchasing directly.
The pressure wheel has two types of opening and non-opening
You can pass larger products with opening, but it is not recommended to make the width too big, because the glue may be uneven
for non-opening , can only pass products which size smaller than the width of the roller.choose according to your products and requirements.

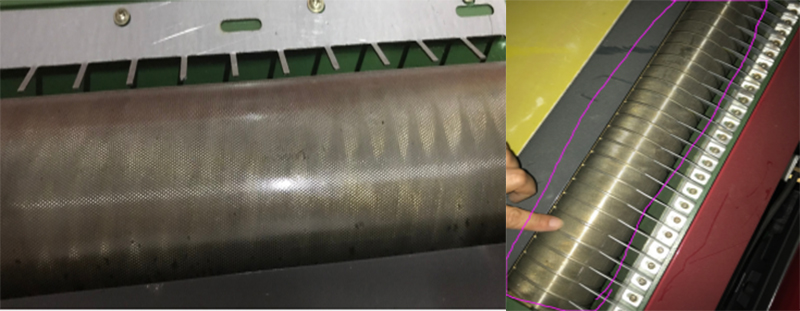

The glue coating machine can also be slotted or not slotted
Not slotted:The entire steel roller with glue
Slotting:The entire steel roller part contains glue,can save glue
